H6plus-170 H6plus-190 H6plus-220
HP45 H6plus
Modle
Features
New curved surface structure design, paper perfect fit, printing effect is more perfect .
Associated with the ink frame design, more humanize .
Can print pictures, text, print lines accurate, clear and smooth .
Plotting material: 40-250g marker/pattern paper .
Compatible with domestic and foreign garment CAD software .
Servo motor drive, high precision, low noise, long life .
Windows drive printing, do as what you want .
Parameters
| Model | H6plus-170 | H6plus-190 | H6plus-220 | ||||
| HMI | LCD | ||||||

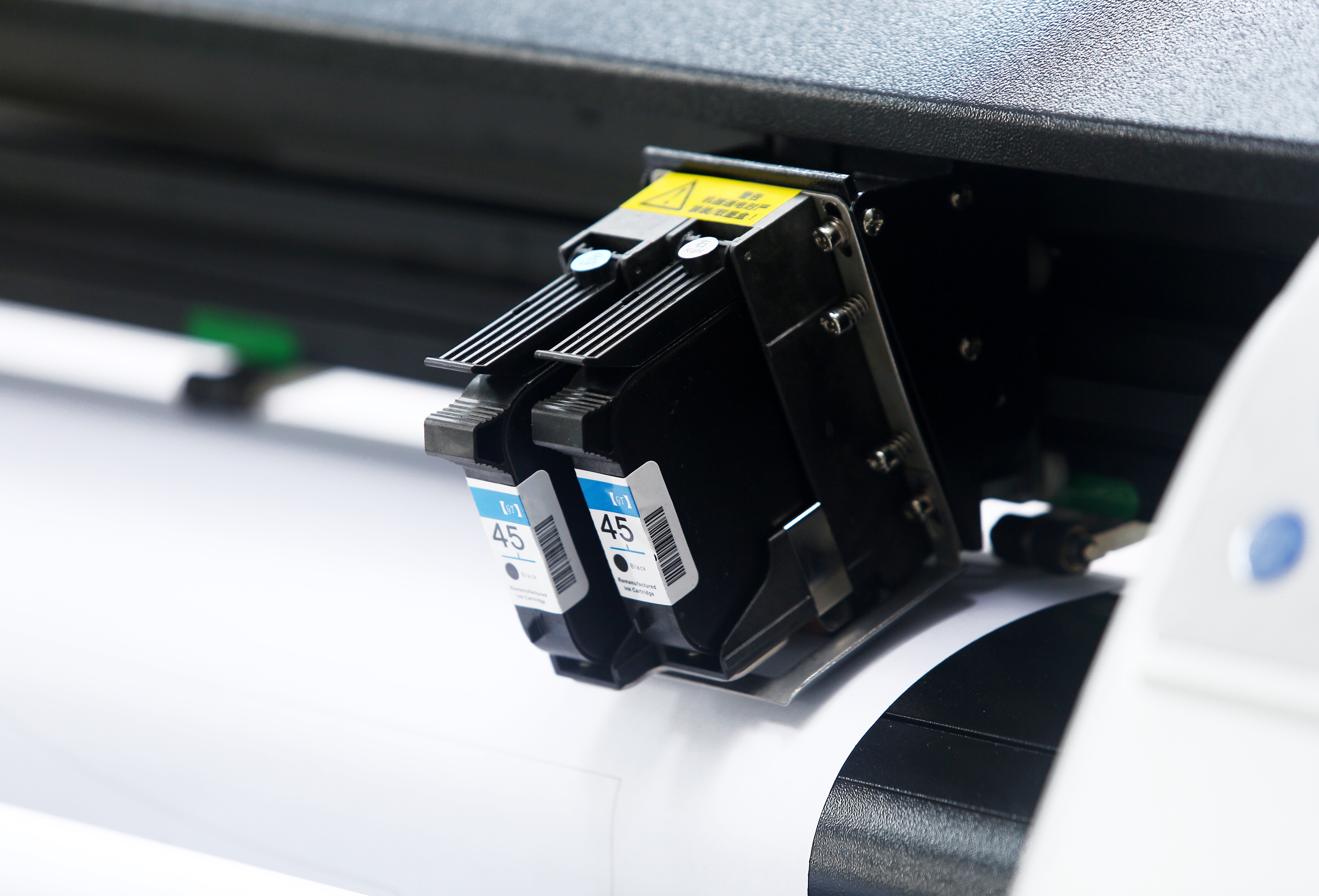

| Inkjet technology | HP 45 | ||||||
| Resolution | 600dpi/300dpi | ||||||
| Plotting material | 40g-250g marker paper | ||||||
| Working width | 1700mm | 1900mm | 2200mm | ||||
| Paper feeding metho | Roller type, automatic paper feeding | ||||||
| Max Cutting Speed | 120cm/s | ||||||
| Max Printing Speed | 80m²/h | 85m²/h | 90m²/h | ||||
| Compatible software | Various CAD software | ||||||
| Transmission port | USB2.0 | ||||||
| Power supply | 110/220V 50/60Hz 110W | ||||||
| Machine dimensions | 2295mm*530mm*1090mm | 2545mm*530mm*1090mm | 2835mm*530mm*1090mm | ||||
| Package dimensions | 2450mm*610mm*600mm | 2700mm*620mm*600mm | 3000mm*620mm*600mm | ||||
