ECON-1209 ECON-1512 ECON-1216

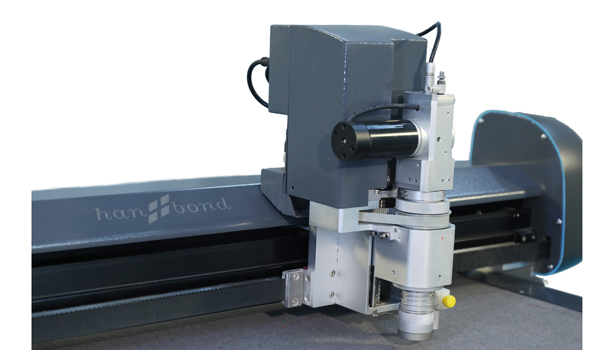

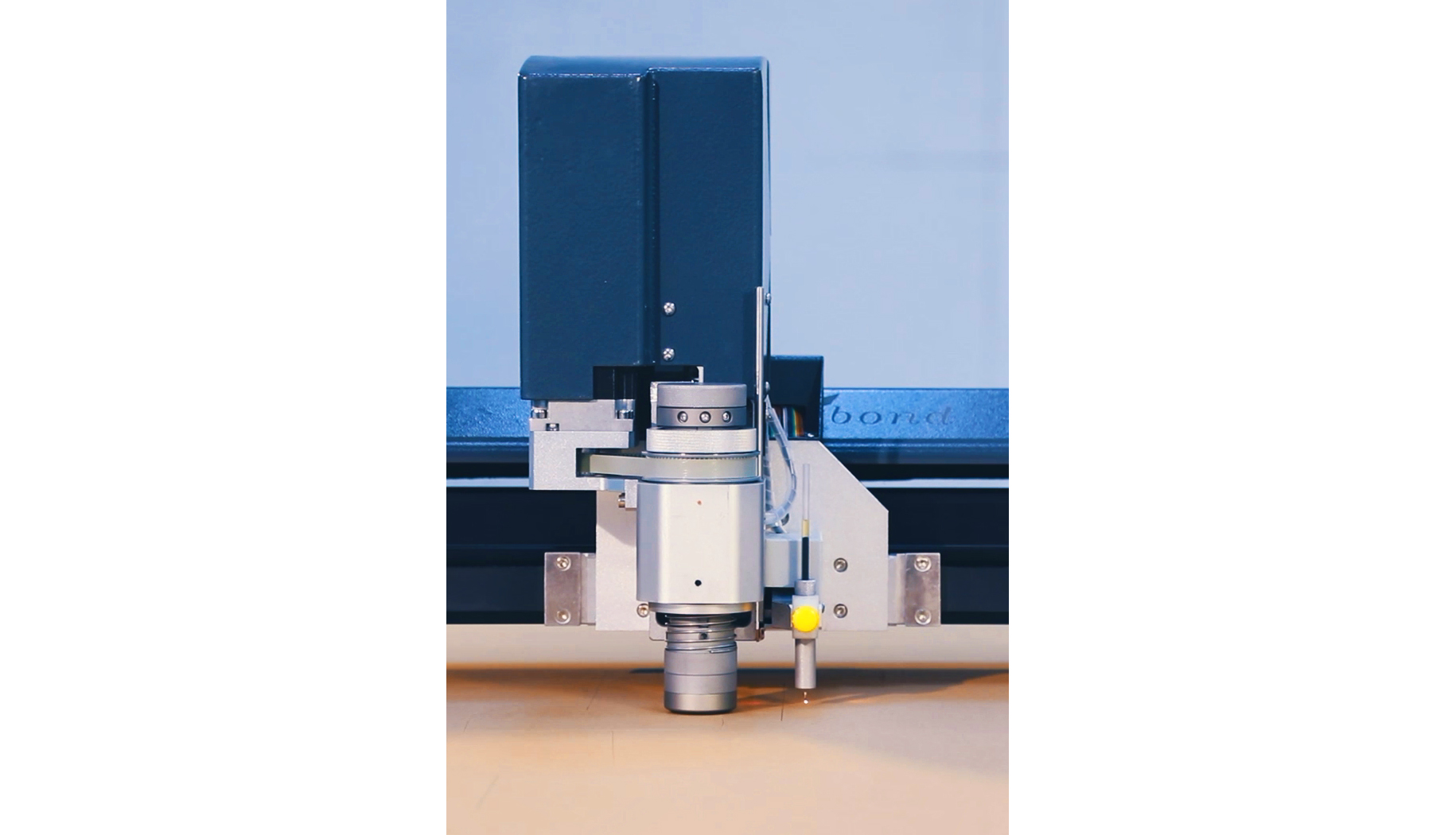

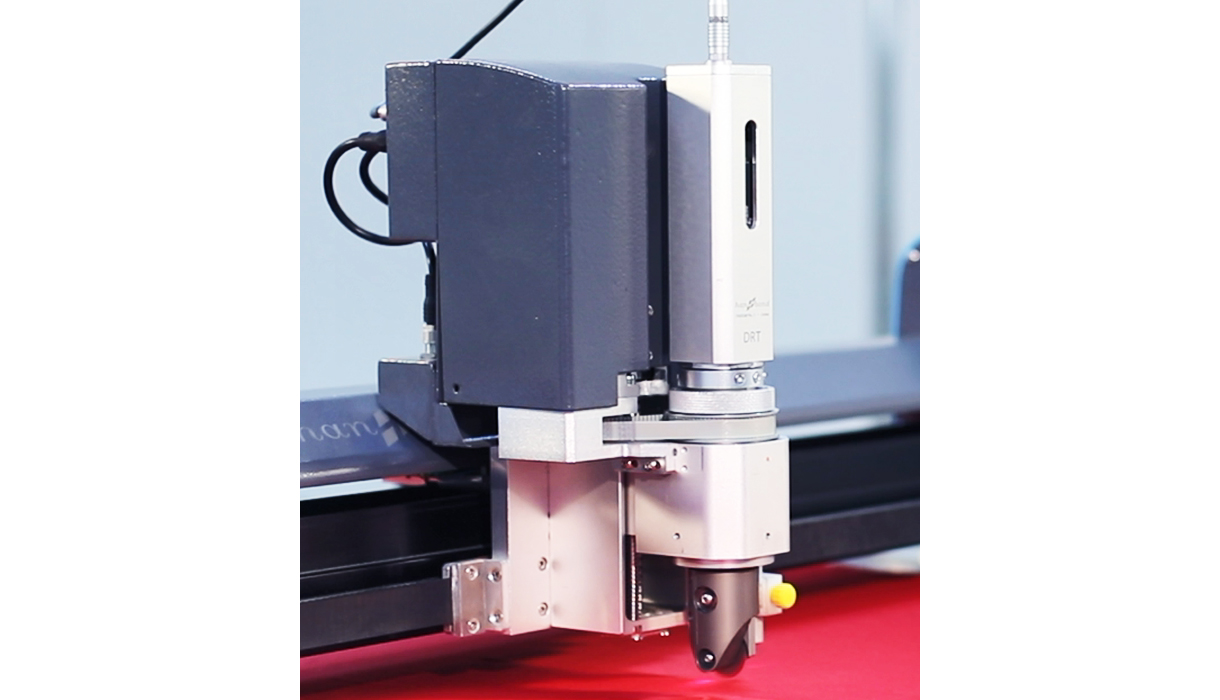

Sample Cutting Machine
Modle
Features
◆Cutting sample garment (cutting all kinds of fabrics with DRT, optional EOT cutting composites).
◆Cutting pattern(use DRT to cut pattern, such as white cardboard, kraft paper and other materials; optional EOT cut pattern, such as white cardboard, kraft paper, etc; optional UCT cut pattern, such as white cardboard, kraft paper and 5mm cardboard and other materials).
◆Cut the clean plate(shaped plate, wrap ironing plate, use DRT to cut 0.5mm yellow plate [ Epoxy resin board,1.0mm PVC and other materials; optional UCT cut 0.5mm yellow plate [ Epoxy resin plate],1.0mm PVC, etc; optional EOT cut 0.5mm yellow plate [ Epoxy resin plate],1.5mmpVC,1.5mmABS,1.5mm steel cardboard,5mm middle bottom plate and 5mm cardboard etc.).
Parameters
Model | ECON-1209 | ECON-1512 | ECON-1216 |
Maximum Cutting Area | 1200*900mm | 1500*1200mm | 1200*1600mm |
Maximum Cutting Speed | 800mm/s(According to different cutting materials) | ||
Tool | DRT(Optional EOT,UCT)+pen+positioning cursor | ||
Machining Accuracy/ Repeating Accuracy | ±0.2mm/±0.05mm | ||
Data Format | Compatible with any garment CAD format,HP-GL,DXF | ||
Transmission Port | RS232 serial port | ||
Drive Way | Step+Servo | ||
Power Supply | 110/220v ± 20% 50~60HZ | ||
Mechanical Power | 0.8kW | ||
Fan Power | 3kW | ||
Machine Size | 2025*1465*1280mm | 2325*1765*1280mm | |
Package Size | 2000*1640*610mm | 2300*1940*610mm |
