EPSON380 Technology

Modle

HB-1209pro HB-1512pro

Features

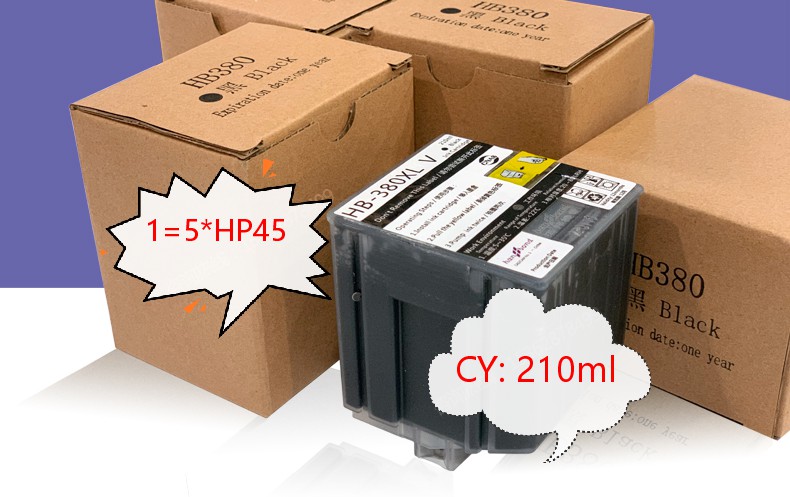

Super large capacity cartridge, piezoelectric type nozzle , super long service life nozzle, stable Large ink cartridge , reduce the cost of consumabIes .

No code ,curve smooth without shaking .

Intelligent automatic identification and optimization of the file data .

Frame platform design and manufacture according to the standard of NC Machine .

Accept the bespoke specifications, the maximum cutting area can do 3000*1600 mm .

Parameters

Model

HB-1209Pro

HB-1512Pro

HMI

LCD

Inkjet technology

EPSON380

Resolution

360dpi

Blade

Japanese OEM , service life is 3-10 times of the ordinary blade

Cutting thickness

60g-600g

Cutting material

Kraft paper , computer paper , plastic board , white cardboard and other fibers

The max cutting area

1200mm*900mm

1500mm*1200mm

Drive way

Servo system

Inkjet speed

60㎡/h

90㎡/h

Data format

Compatible with any garment CAD format, HP-GL, DXF

Pump power

1.5KW

Transmission port

USB2.0

Power supply

110/220V±20% / 50~60Hz 2kW

Machine dimensions

1920*1531*1103mm

2220*1831*1103mm

Package dimensions

2000*1640*610mm

2300*1940*610mm
