EPSON380 H7

Modle

H7-170  H7-190  H7-220  H7-260   H7-300

Features

New curved surface structure design, paper perfect fit, printing

effect is more perfect .

Can print pictures, text, print lines accurate, clear and smooth .

Plotting material: 40-250g marker/pattern paper .

Compatible with domestic and foreign garment CAD software .

Servo motor drive , high precision , low noise , long life

Nozzle column width

EPSON 380=2*HP45=1 inch

Maximum printing speed

EPSON 380=5*HP45

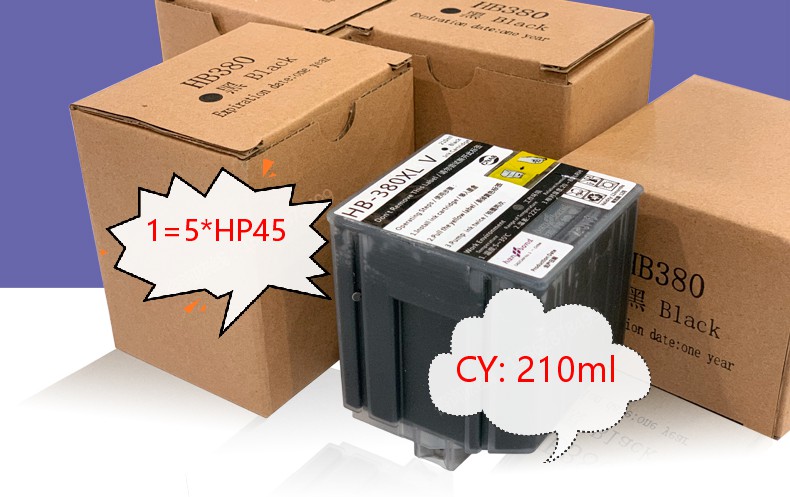

Ink cartridge capacity

EPSON 380 , 210ml/PCS =5*HP45 , 42ml/PCS

Consumptive material cost

EPSON 380=1/10~1/20*HP45

Print head service life

EPSON 380 = FOREVER

HP45 = one-off ( after 7-14 days exhausted )


Features:
1. one-click set printing start point
2.Paper Shortage Alarm and Auto Suspension
3. paper jam alarm and Automatic suspension
4. Standby protection of nozzle and automatic cleaning mechanism , suitable for global climate including desert climate
5. Set parameters online without downtime
6. Automatic paper cutting when end of printing ( END CUTTING)



Parameters

Model

H7-170

H7-190

H7-220

H7-260

H7-300

HMI

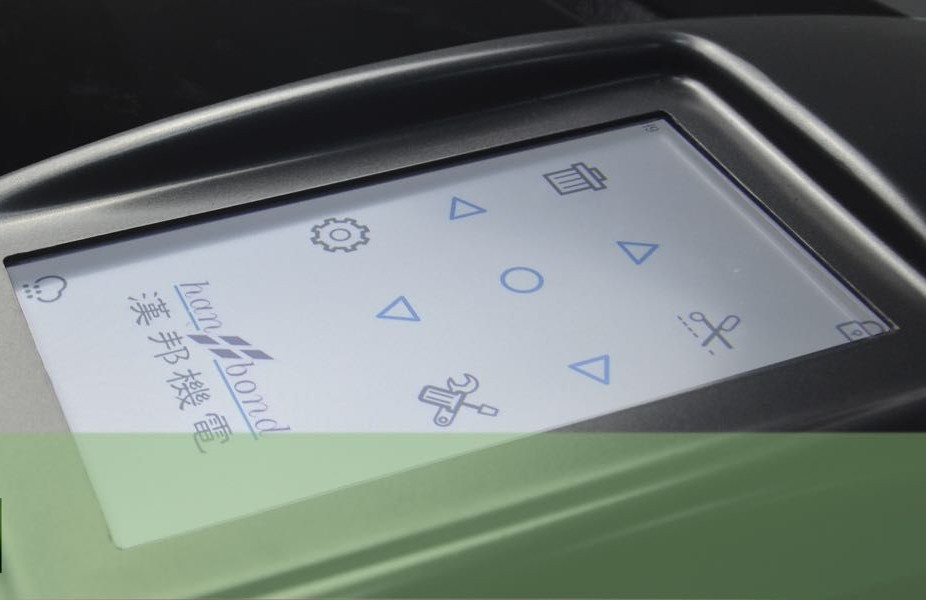

7" touch screen

Inkjet Technology

EPSON 380

Resolution

360dpi

Plotting Material

40-250gsm marker paper

Working width

1700mm

1900mm

2200mm

2600mm

3000mm

Paper Feeding Method

Roller type, automatic paper feeding

Mlaximum Speed

100㎡/h

105㎡/h

110㎡/h

120㎡/h

130/h

Compatible Software

Various CAD software

Transmission Port

USB2.0

Power Supply

110/220V±20% / 50~60Hz 110W

Machine Size

2320*550*1100mm

2570*550*1100mm

2860*550*1100mm

3260*550*1100mm

3660*550*1100mm

Package Size

2490*650*590mm

2740*650*590mm

3030*650*590mm

3430*650*590mm

3830*650*590mm
