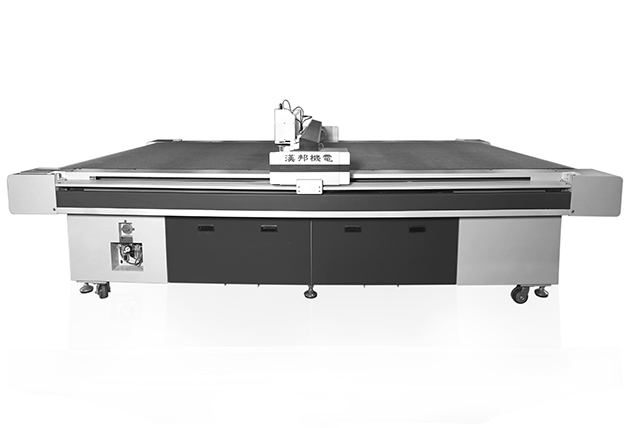

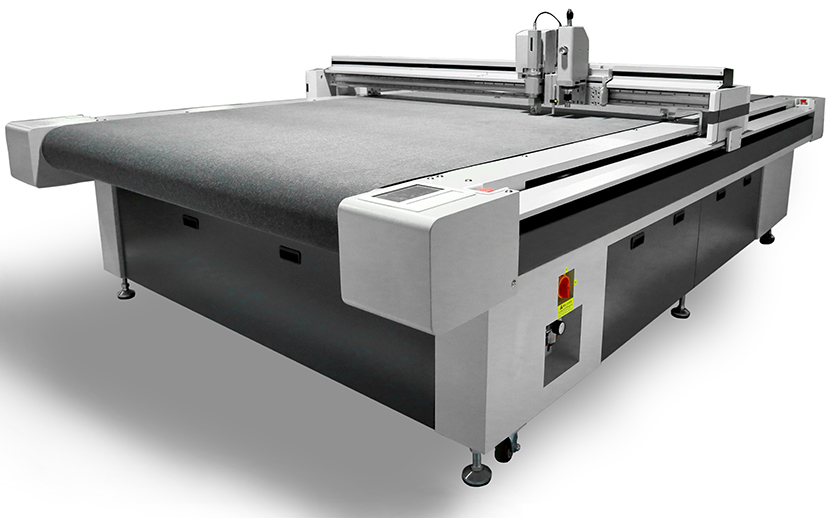

Digital Cutting Machine

Model



kimo-1209    kimo-2516    kimo-2516R


Features



Han-Bond independent research and developed CAM software prevents inner angles break cutting to recover graphic outline maximally

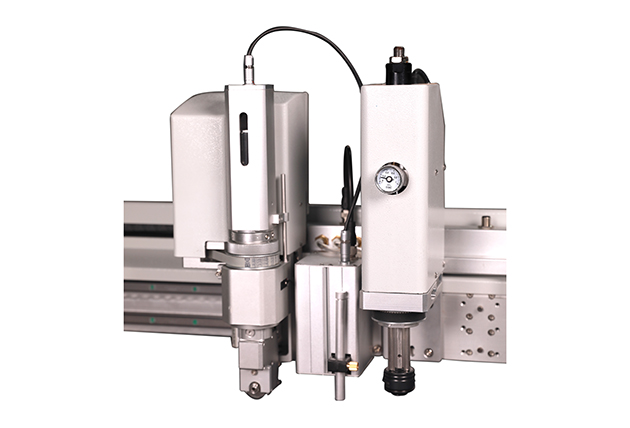

The modular tools make it easy to specific cutting needs. Define your production requirements, and select the building blocks that will make up the perfect configuration for you. Additions  and upgrades are possible any time


Servo motor drive , high precision ,  low noise , long life


Intelligent automatic identification and optimization of the file data


Any type of  notch will  be automatically  converted to  punching  data


Parameters

 Modelkimo-1209kimo-2516kimo-2516R
 Feeding systemDiscontinuous feeding materialContinuous feeding material
 Working area1200mm*900mm2500mm*1600mm
 Max cutting speed120cm/s
 Working accuracy±0.1mm
 Max material processing height45mm
 Transmission portSerial port
 Data formatHP-GL、DXF、PLT
 Cutting materiallCorrugated board,KT Board,PP paper,Sticker,Fiber cloth,Acrylic board,MDF,PVC foam board,Paper,Cardboard,Leather,PU,etc.
 Power supply220V 50/60HZ380V 50/60HZ
 Pump power2*1.5KW9KW
 Equipment power2.2KW
 Medium adsorptionVacuum
 EnvironmentTemperature 0℃-40℃   Humidity 20%-80%
 Machine dimensions2400mm*1700mm*1200mm3600mm*2400mm*1200mm3700mm*1400mm*1200mm
