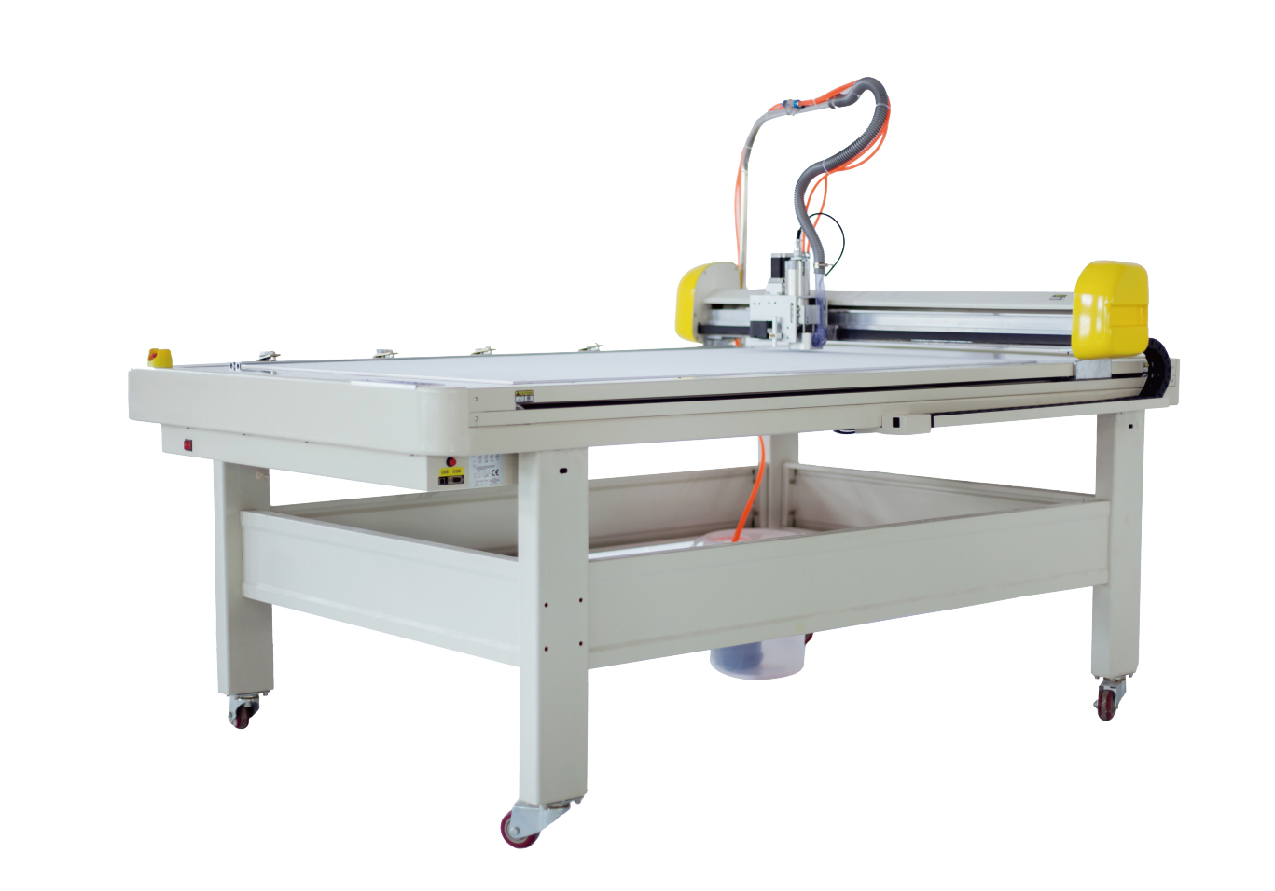

HB-1510CS HB-1512CS HB-1812CS
Multilayer Template Cutting Machine
Model
Features
Can once cut 8 mm thickness within the 1-5 layers template
Gold partner kimo 2019 template sofetware

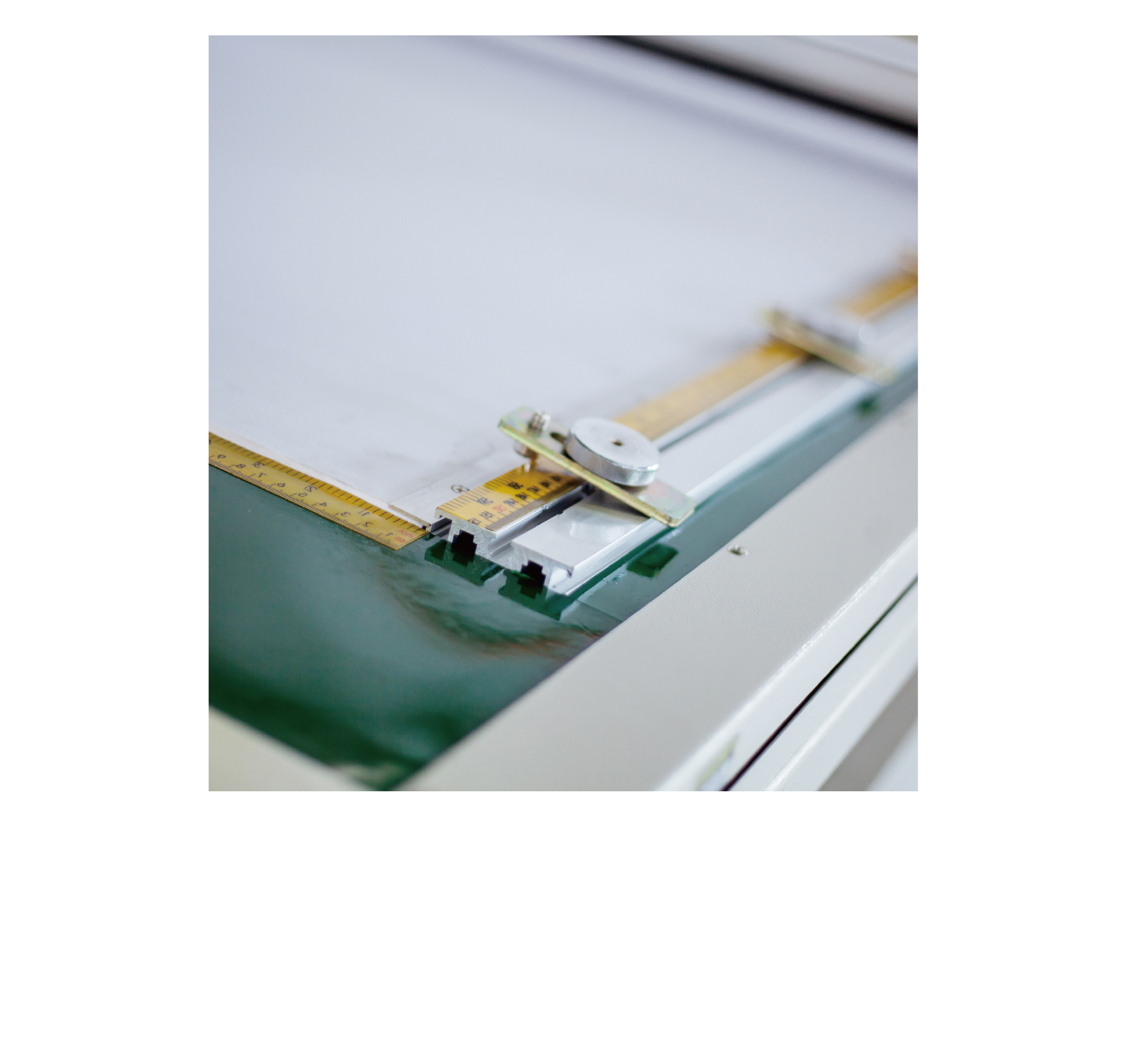

Material fixed way : mechanical clamping
Frame platform design and manufacture according to the standard of numerical control machine
High speed,precision,no code ,curve smooth without shaking
Accept the bespoke specifications, the maximum cutting area can do 3000*1600 mm

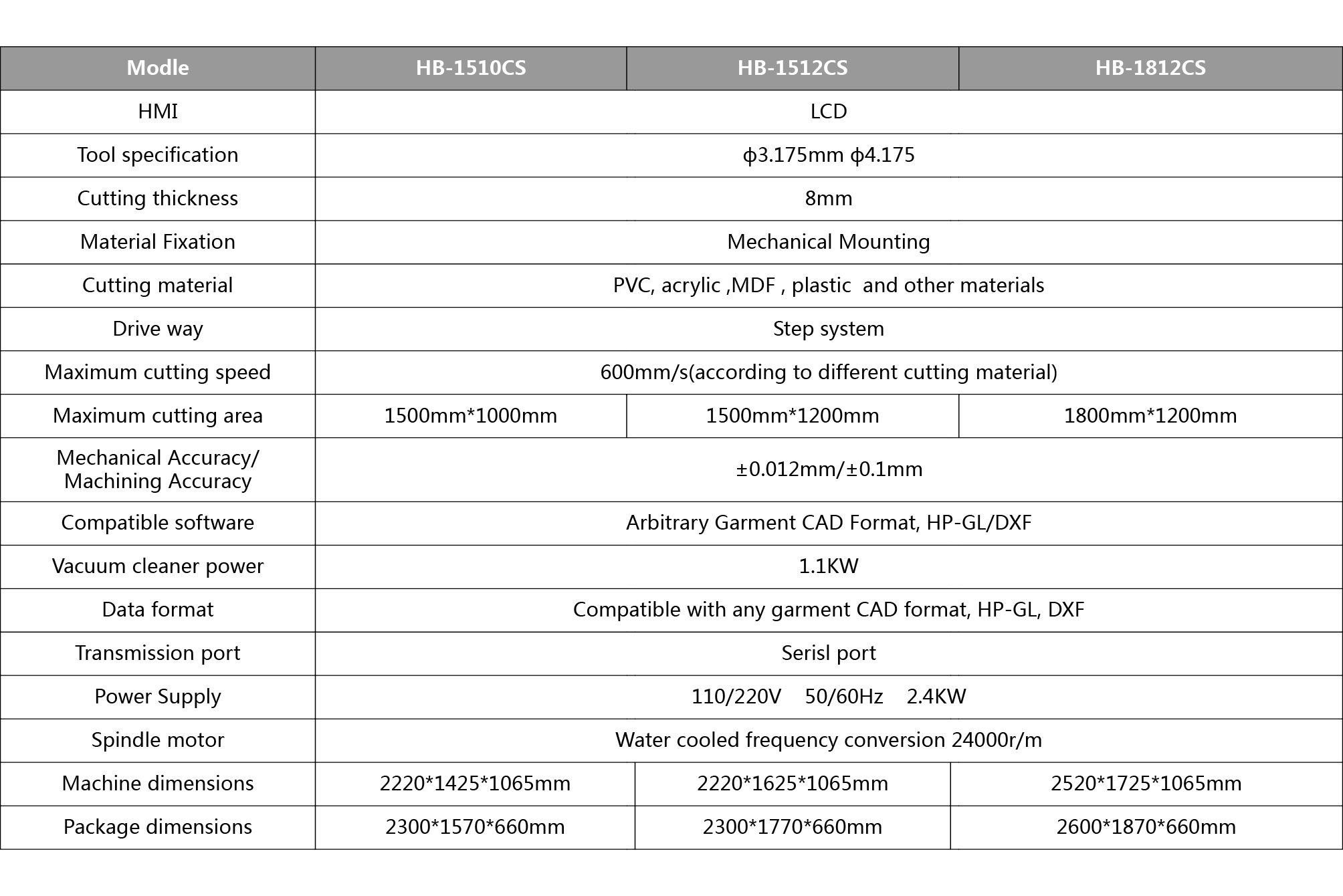

Parameters
| Modle | HB-1510CS | HB-1512CS | HB-1812CS |
| HMI | LCD | ||
| Tool specification | ф3.175mm ф4.175 | ||
| Cutting thickness | 8mm | ||
| Material Fixation | Mechanical Mounting | ||
| Cutting material | PVC, acrylic ,MDF , plastic and other materials | ||
| Drive way | Step system | ||
| Maximum cutting speed | 600mm/s(according to different cutting material) | ||
| Maximum cutting area | 1500mm*1000mm | 1500mm*1200mm | 1800mm*1200mm |
Mechanical Accuracy/ Machining Accuracy | ±0.012mm/±0.1mm | ||
| Compatible software | Arbitrary Garment CAD Format, HP-GL/DXF | ||
| Vacuum cleaner power | 1.1KW | ||
| Data format | Compatible with any garment CAD format, HP-GL, DXF | ||
| Transmission port | Serisl port | ||
| Power Supply | 110/220V 50/60Hz 2.4KW | ||

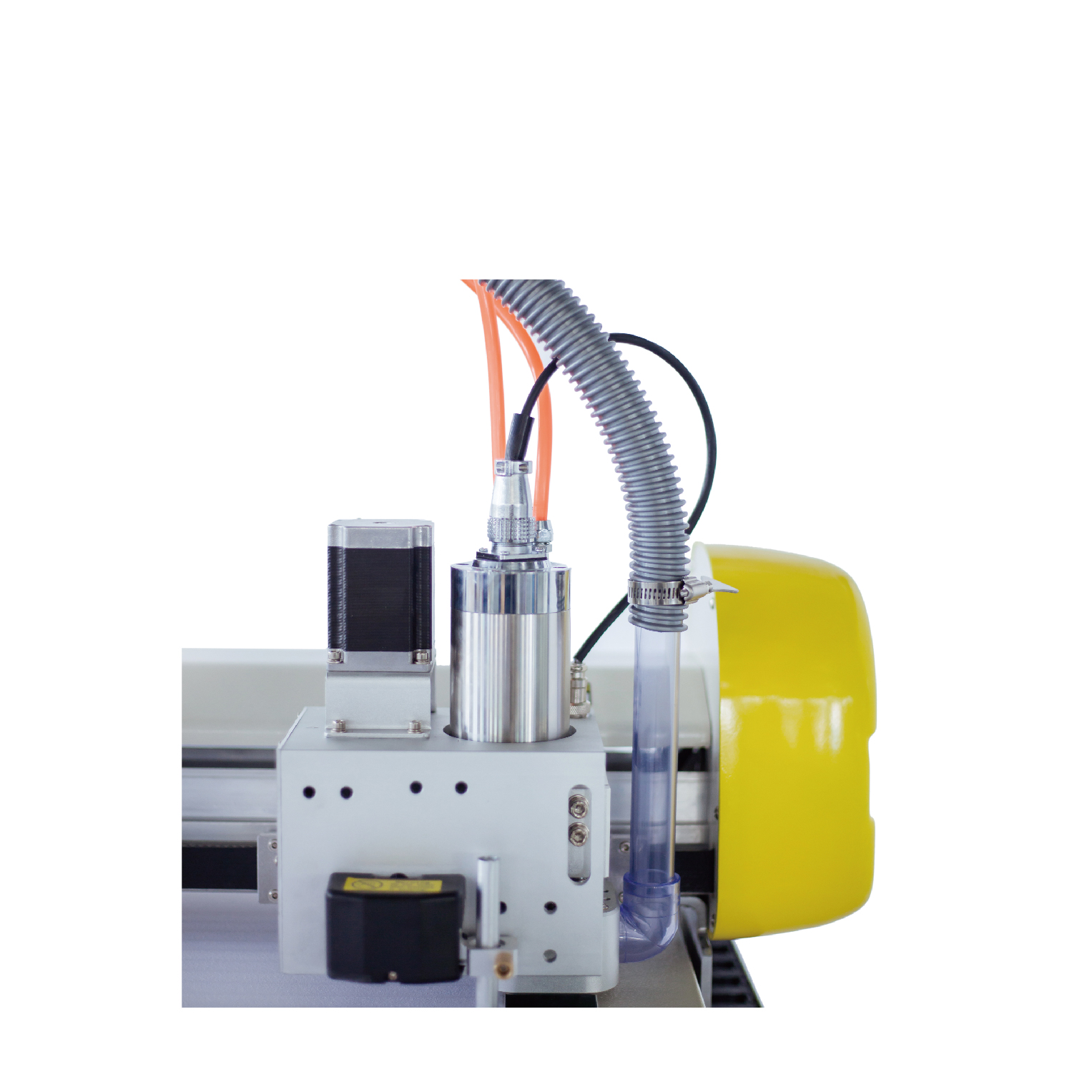

| Spindle motor | Water cooled frequency conversion 24000r/m | ||
| Machine dimensions | 2220*1425*1065mm | 2220*1625*1065mm | 2520*1725*1065mm |
| Package dimensions | 2300*1570*660mm | 2300*1770*660mm | 2600*1870*660mm |
